Pro GPS-DMI
The Ames Pro GPS-DMI is a Distance Measurement Instrument that uses a GPS receiver to measure pavement distances, replacing traditional encoder-based DMI systems. Nothing else on the market today works more efficiently to guarantee accurate distance measurement. The Pro GPS-DMI is accurate to within 0.2% distance measurement, with no calibration needed! We offer different versions to best suit your needs, be it a simple LCD readout, collection on a laptop with our GPS-DMI Display software, or collection on a laptop with a connected camera.

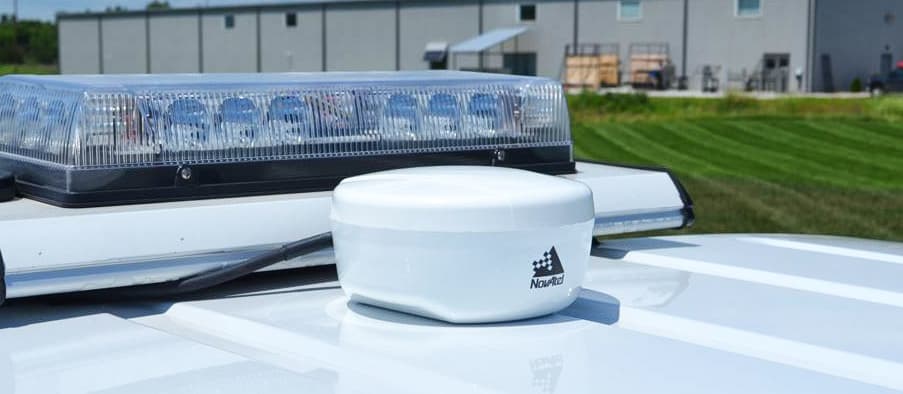

Simply plug the Pro GPS-DMI into a vehicle’s OBD-II port, attach the magnetic mounted GPS receiver, and go to work. Moving the Pro GPS-DMI from one vehicle to another can be done in minutes. LED indicators quickly alert the user to quality issues of the GPS or vehicle speed sensor data. The main distance measurement comes from a 5Hz Garmin GPS receiver, with a connection to the vehicle’s OBD-II port (on compatible vehicles which use a CAN bus diagnostics interface) used as a backup in the case of GPS reception loss. The GPS receiver continuously calibrates the OBD-II backup as you drive.
We offer several display options depending on your needs:
- The Pro GPS-DMI 100 uses a Nitestar display head that may already be familiar for the operator.- The Pro GPS-DMI 250 features a built-in LCD display.- The Pro GPS-DMI Laptop and HD Imaging use a USB connection to a laptop with our GPS-DMI Display software installed. The software measures distance, collects GPS station information, and (optionally) captures images at regular intervals. This data can then be exported as a .kml file for use in viewing software such as Google Earth. The collected images are geo-tagged.

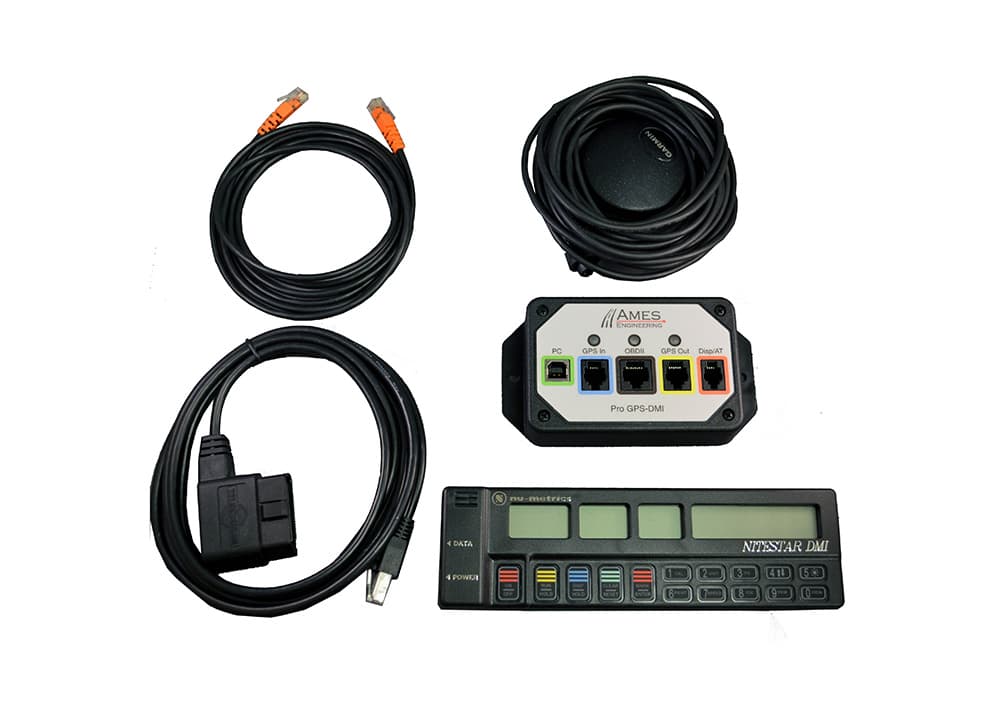

Pro GPS DMI 100

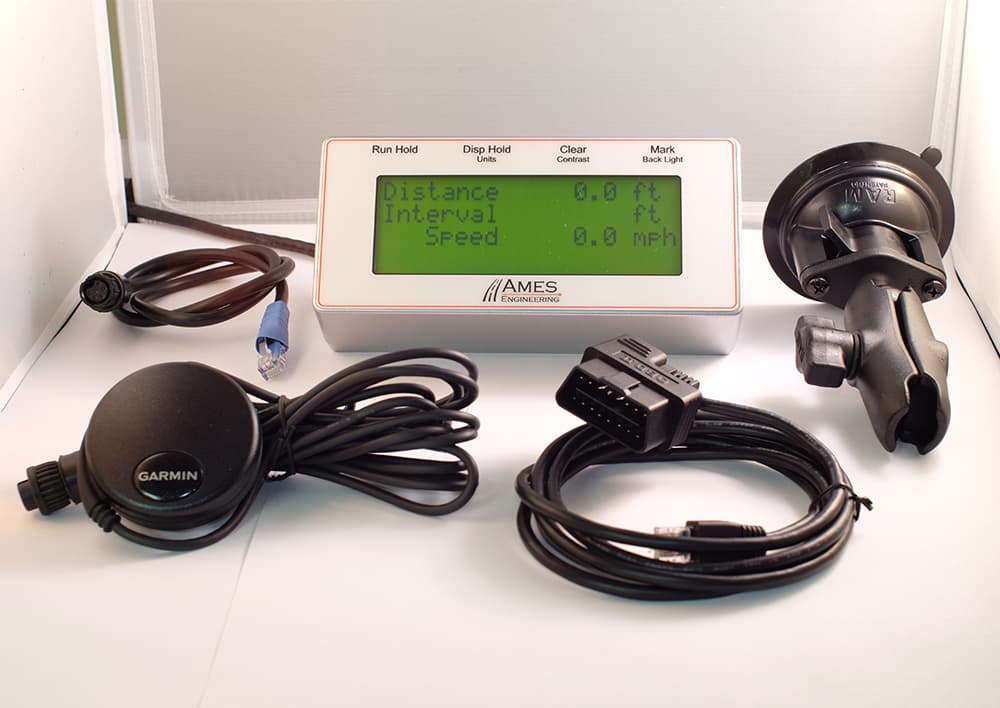

Pro GPS DMI 250
Pro GPS-DMI Laptop
We developed these devices for State, County, and local transportation engineering and maintenance teams, pavement contractors, and utilities so you can work more efficiently and effectively!
- Easy to Use- No wiring required – saving you valuable time and money!- Portable - Moving the GPS-DMI from one vehicle to another can be done in minutes. No permanent wiring required.- Self Calibrating - Tire pressure, tire wear, and temperature changes are irrelevant. The Ames GPS-DMI calibrates continuously as the vehicle is driven.- Complete Solution - Measures distances in foot, mile, meter, kilometer with current speed and memory event coding.| Features | DMI 100Available Through MH Corbin | DMI 250 | Laptop | HD Imaging |
|---|---|---|---|---|
| Display Interface Type | User Supplied Display | Built-In LCD Display | User Supplied Laptop | User Supplied Laptop |
| GPS Receiver Location | Magnetically mounted outside of vehicle | Magnetically mounted outside of vehicle | Magnetically mounted outside of vehicle | Magnetically mounted outside of vehicle |
| Total Distance Measurement | ||||
| Interval Distance Measurement | ||||
| OBDII Backup During GPS Signal Loss | ||||
| GPS Coordinate Display | ||||
| Google Earth Logging | ||||
| User Event Logging | ||||
| HD Image Logging |
Testimonials
I talked to several users of these units. It turns out that just about everyone in our construction offices use them.— Manager, Iowa DOT
I thought, finally, somebody has this right!— Fleet Manager, DOT
We received the three GPS-DMI units today. I walked out into the parking lot and plugged our Nitestar heads into the GPS unit.
Went through your simple calibration procedure and road tested. The units worked as perfectly as you advertised.— District Equipment Manager, PENNDOT
