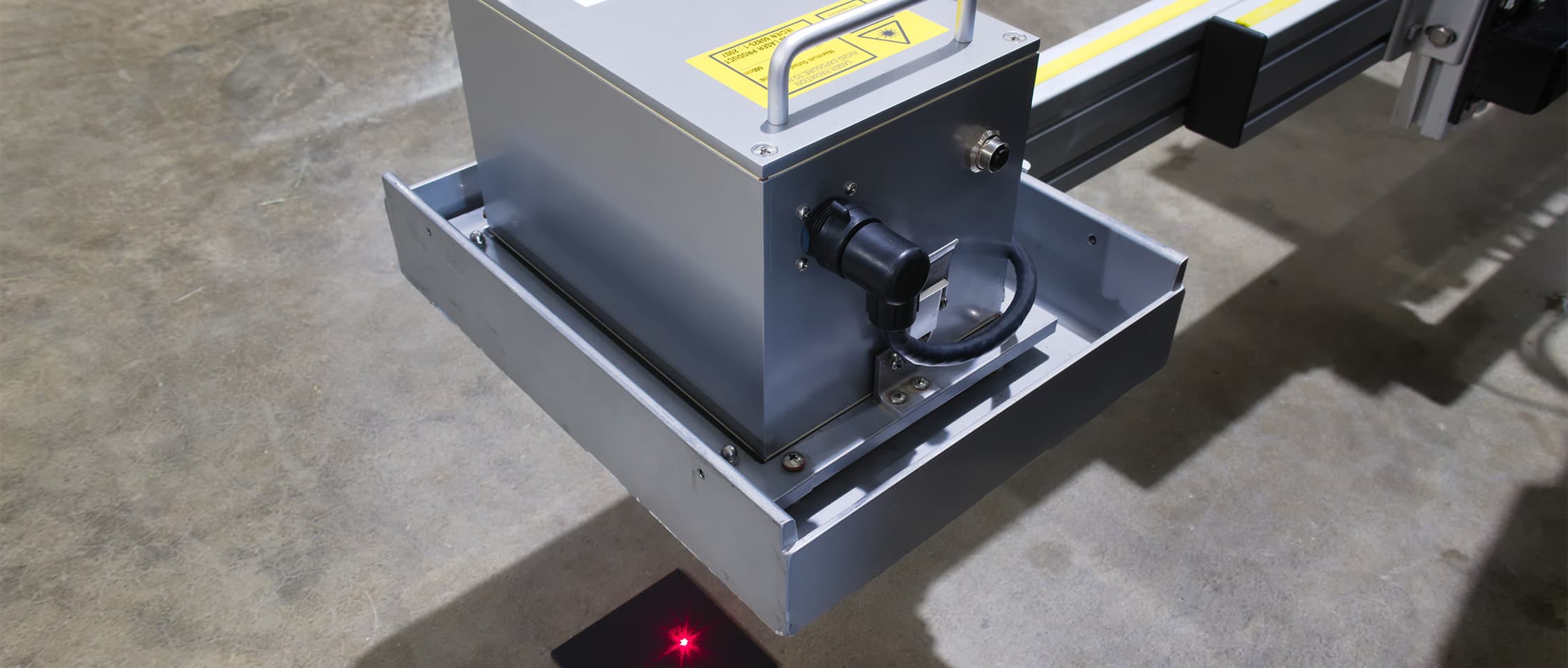

    Ames AccuTexture 100

    Ames AccuTexture 100
    BrochureSalesService

    The Ames AccuTexture 100 is an exclusive sensor that has been developed as the new standard in accurate texture measurements. Gone are the days of variances due to speed and surface type. The AccuTexture 100 outperforms the Optocator on all surfaces in testing performed by Ames Engineering.

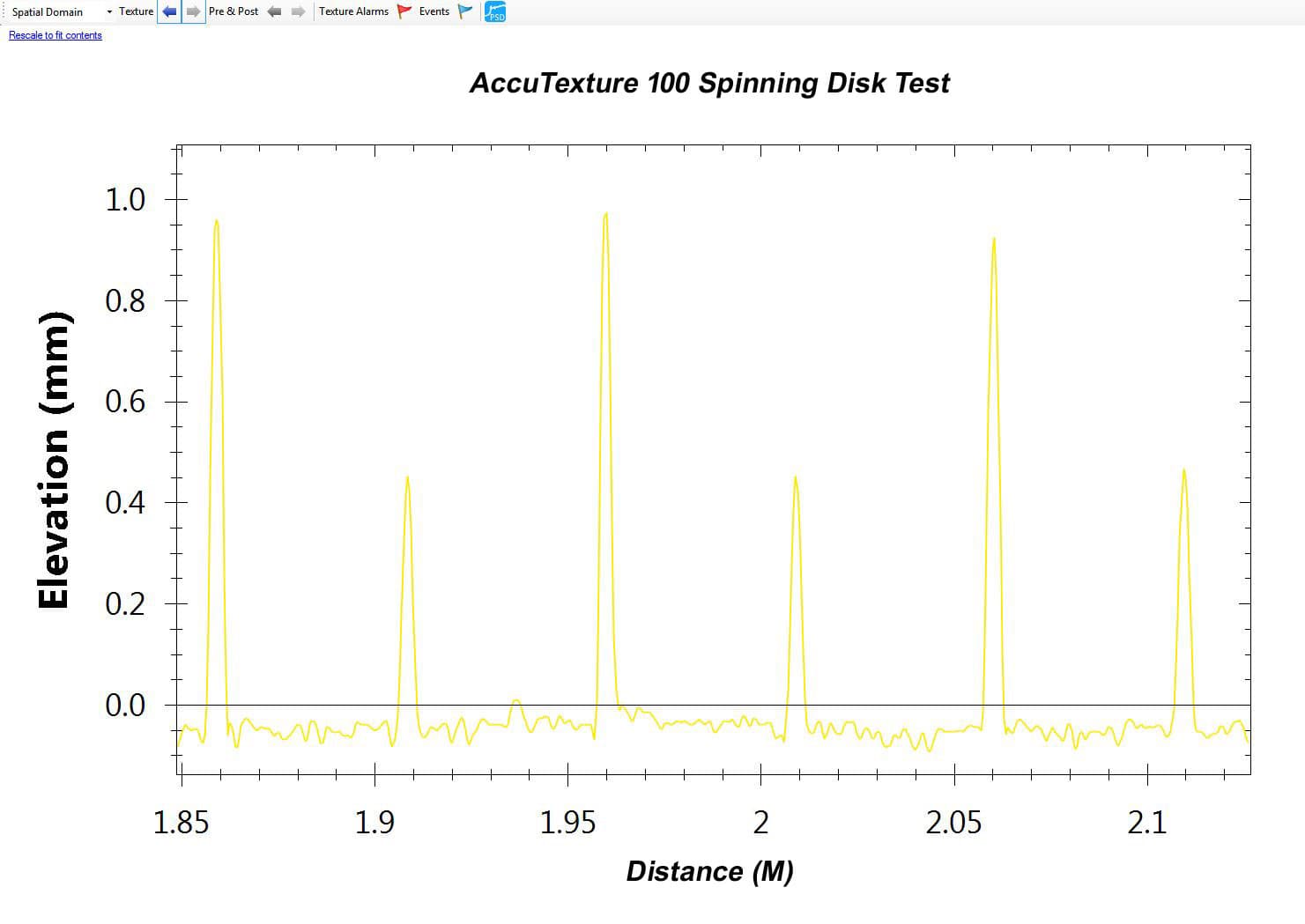

    AccuTexture Spinning Disk Test

    AccuTexture Comparison

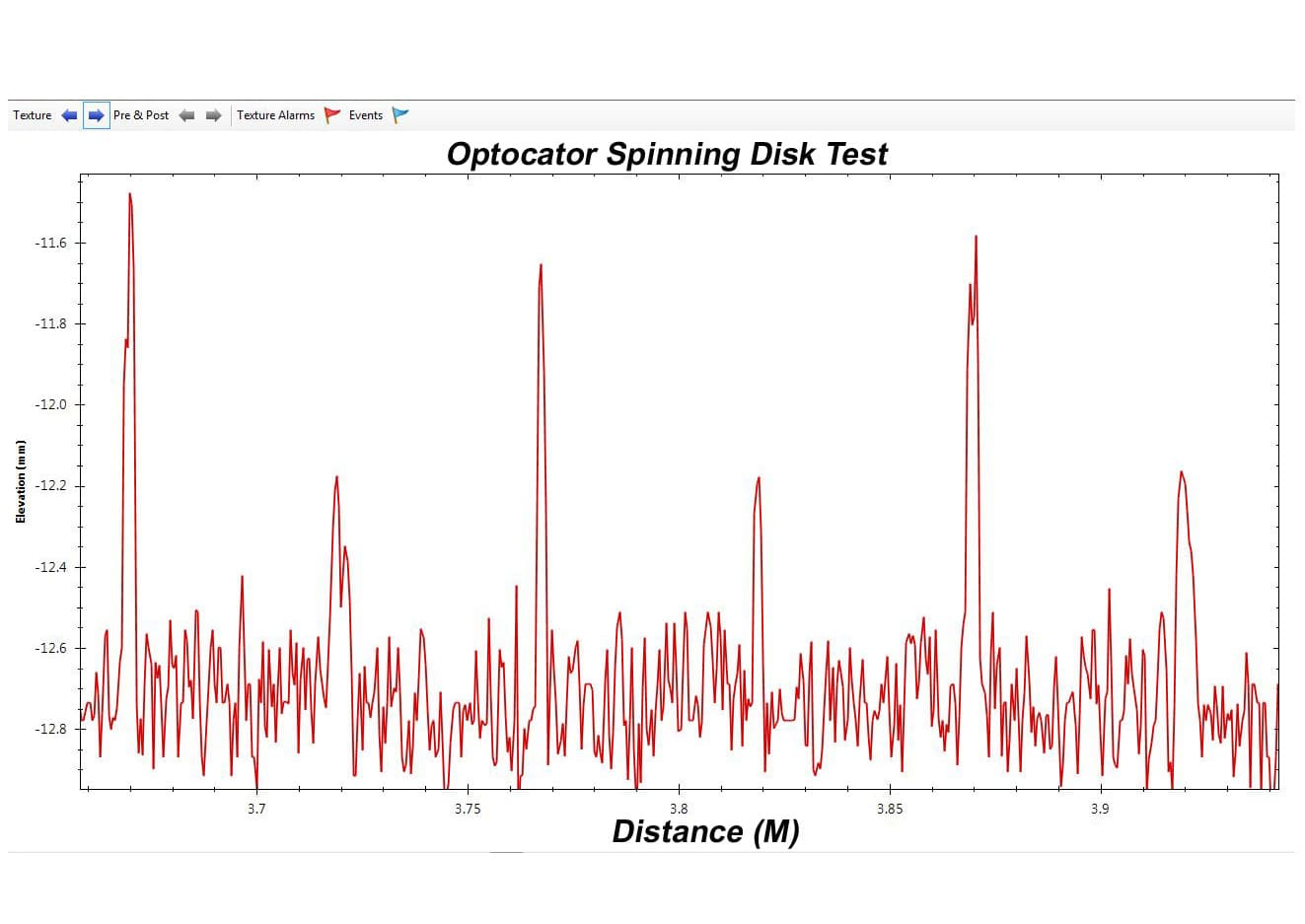

    Optocator Spinning Disk Test

    Optocator Comparison

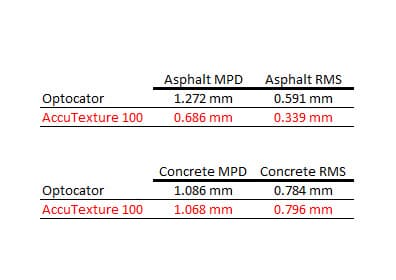

    AccuTexture vs Optocator Comparison Results

    Comparison Results

    Laser OverviewSpecs

    Laser Overview

    • - This 100 kHz sensor simultaneously collects profile and texture information at highway speeds
    • - The most cost effective option for texture measurements
    • - Can easily be retrofitted to existing Ames profilers

    AccuTexture 100 Specs

    • - Sample Rate: 100 Khz
    • - Elliptical laser spot
    • - Size at near: 1 x 3 mm
    • - Size at far: 0.8 x 1.5 mm
    • - Triangulation at near point : 7 degrees
    • - Triangulation at far point: 14 degrees
    • - Maximum exposure time: 12µs
